Product

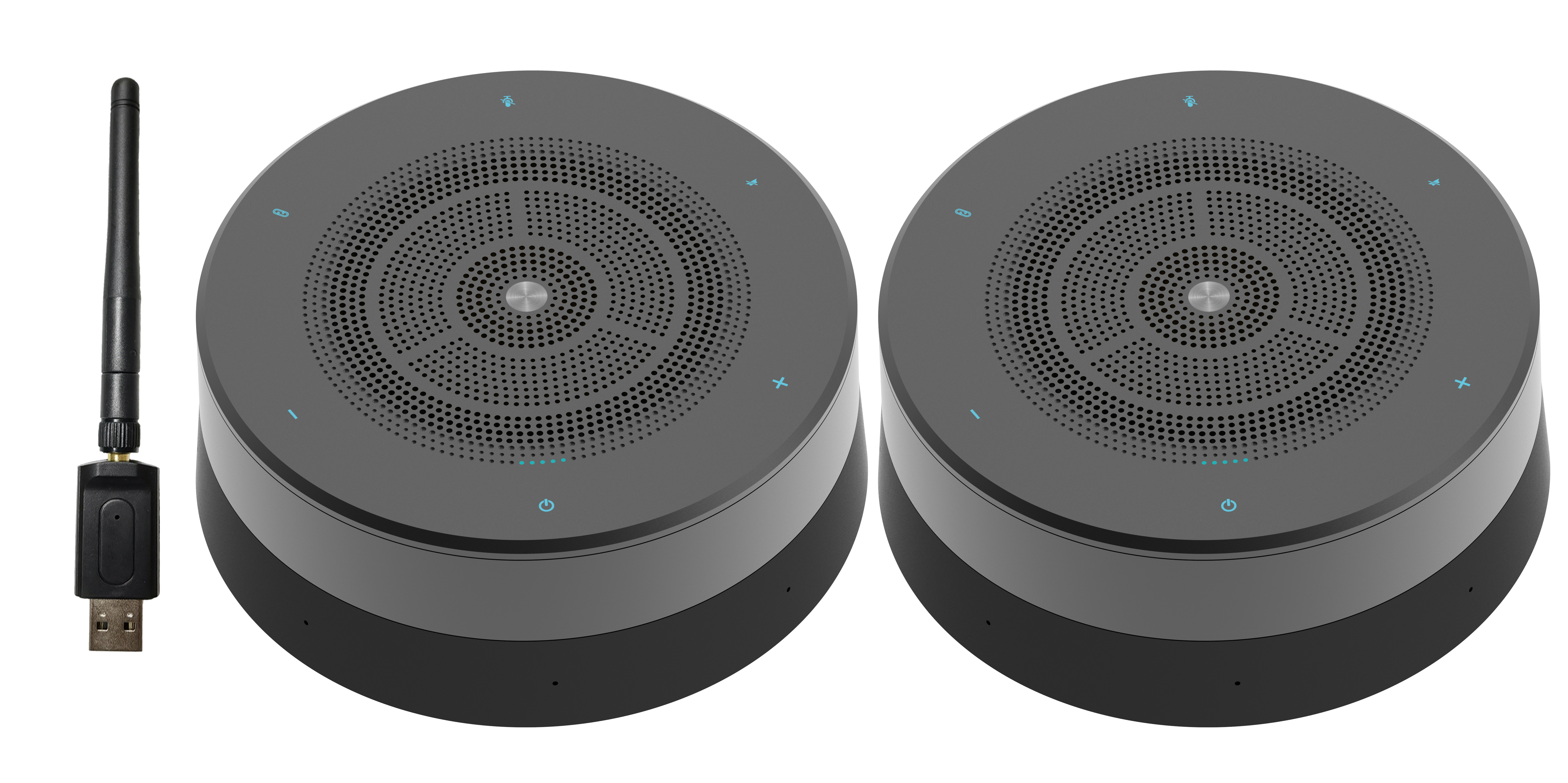

Cascade Omnidirectional Microphone with 4-Mic Array, 7m Pickup, USB/2.4G/RJ45
Cascade omnidirectional microphone with 4-element silicon mic array, 360° coverage, 7m pickup radius, and 3A audio processing. Supports USB, 2.4GHz wireless, and RJ45 wired cascading for up to 8 units. Ideal for conference rooms and unified communications.
- Export packaging & documentation support
- OEM / ODM customization available
- Sample and bulk order workflow
1. Equipped with a 4-element silicon microphone array for 360-degree full coverage.
2. Microphone processing technology: built-in high-performance 3A algorithm.
3. Utilizes beamforming (BF) technology.
4. Microphone sampling rate: 48K, 24Bit / 48K, 16Bit intelligent dual mode.
5. Pickup distance: 7-meter pickup radius, optimal use radius 4 meters.
6. Speaker playback: 105DB, 48K, 24bit or 48k, 16bit intelligent dual mode.
7. Transmission methods: Type-C USB, wireless 2.4GHz, Ethernet cable.
8. LED display: array light strip with color indication; different colors display different statuses; battery level shown in tiers.
9. Speaker volume displayed in tiers.
10. Converged communication: supports back-to-back audio transmission technology and cross-platform converged communication.
11. Button control: tactile buttons with independent button lighting, indicating device working status such as connection mode.
12. Microphone pickup status and speaker working status, etc.
13. Battery life: extended battery life with large-capacity lithium battery, 5200mAh.
14. Standby time: extended standby time; when fully charged, standby time is no less than 13 months.
15. Multiple noise reduction technologies: physical noise reduction + algorithm noise reduction.
16. Cascade support: wireless cascade of 2 units, covering conference rooms within 80 square meters.
17. Supports synchronization of status between 2 cascaded microphones; when status is not synchronized, independent control is possible.
18. Compatible software: supports various video conferencing software, Tencent Meeting, ZOOM, DingTalk, HST, Vidyo, Webex, Skype for Business, Google Hangout, and other web conferencing software.
19. Compatible system platforms: Windows ALL, Android standard version, Linux standard version, Apple systems.
20. Supports RJ45 interface, wired cascade function, up to 8 units wired cascade, and supports POE power supply.
21. Supports wireless expansion function, up to 4 wireless expansion pickup devices (array microphone, handheld, lavalier, gooseneck optional).
22. Supports local sound reinforcement with wireless expansion microphones, and supports external mixer connection.
23. Input/output interfaces: Type-C USB, RJ45, DC12V, wireless adapter.
