Wireless Omnidirectional Microphone with Expansion Mics | 4-Array, 8W Speaker
All-in-one wireless omnidirectional microphone with built-in 4-array pickup and 8W speaker, supporting up to 4 wireless expansion mics. DSP algorithms ensure clear full-duplex calls within 2.5m. Ideal for meeting rooms up to 60 sqm.
- Export packaging & documentation support
- OEM / ODM customization available
- Sample and bulk order workflow

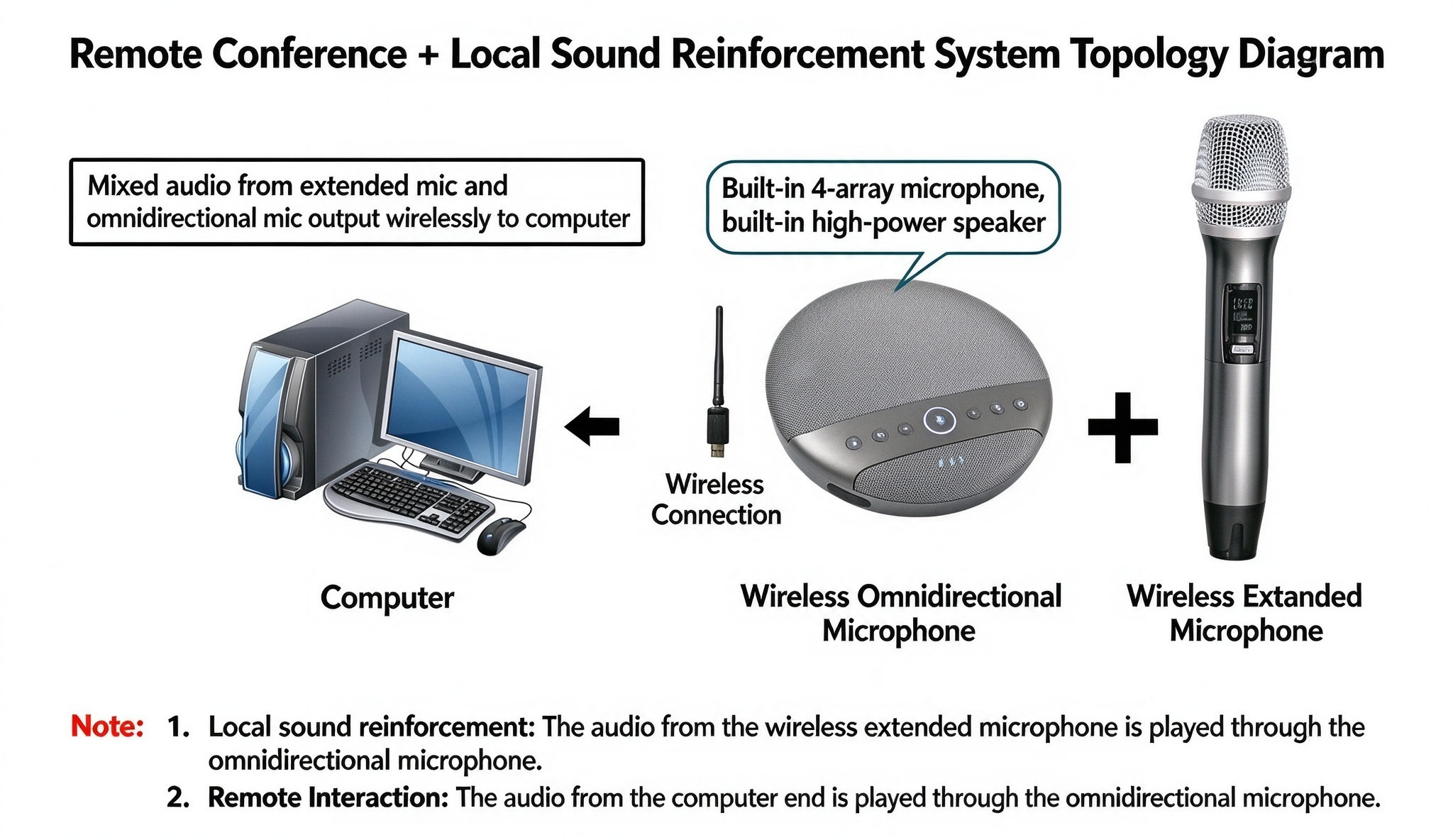

1. A complete set consisting of an omnidirectional array microphone with built-in 4-array pickup heads and an 8W high-power speaker, plus a wireless expansion microphone. Supports up to 4 external wireless expansion microphones. The wireless expansion microphone can be used for local sound reinforcement through the omnidirectional array microphone speaker. It supports simultaneous USB wired and wireless connection to a PC, with low latency, high fidelity, and intelligent dual-mode switching. The wireless expansion approach is recommended for meeting rooms under 60 square meters. Equipped with a professional high-performance DSP processor, it leverages intelligent mixing, full-duplex intercom algorithm, echo cancellation, automatic gain control, and intelligent noise reduction algorithms to provide strong algorithmic support for video conference calls. Within 2.5 meters, both parties can speak simultaneously without stuttering or dropped words, and the sound is clear, smooth, and natural. The speaker delivers sound with bass, full and comfortable. It truly achieves easy listening and easy speaking without fatigue. Widely used in remote video conferencing, educational recording and broadcasting, live streaming, telemedicine, and other fields.
Instructions:
I. Connecting to PC:
2. Insert the wireless receiver into the PC's USB port. Long-press the power button on the omnidirectional microphone to turn it on. The wireless receiver and omnidirectional microphone will connect automatically, and then the blue light will stay on.
3. Turn on the power of the wireless expansion microphone. The wireless expansion microphone and omnidirectional microphone will also connect automatically, and the LED on the omnidirectional microphone will also stay blue.
Function Description:
4. Product Features
Wireless Expansion Microphone Parameters:
5. Frequency range: 640MHz ~ 690MHz
6. Bandwidth: 50MHz
7. Maximum number of channels: 200
8. Receiving sensitivity: <= -105dBm
9. Signal-to-noise ratio: >= 80dB
10. Frequency response: 30Hz ~ 15KHz
11. Audio output level: 350 mV
12. Distortion THD+N: <0.5%
13. Delay time: <3ms
14. Power: USB 5V/150mA
15. Operating temperature: -25°C to 60°C
Array Audio Main Unit Parameters:
16. Supports 3.5mm connection to external sound reinforcement system for sound amplification, suitable for larger venues.
17. Supports local sound reinforcement via wireless expansion microphone, up to 4 wireless expansion microphones. Various wireless expansion microphones such as handheld, lavalier, gooseneck, and array pickup can be selected.
18. Supports simultaneous local sound reinforcement from wireless expansion microphones and mixing output to the video conferencing system with the array microphone.
19. Supports on/off switching of the expansion microphone local sound reinforcement function with one button.
20. Supports simultaneous wired and wireless connection to PC devices.
21. Supports 8-level adjustment of microphone pickup level.
22. Supports 16-level adjustable volume for wired connection.
23. Supports 8-level adjustable volume for wireless connection.
24. Built-in audio algorithms including echo cancellation, feedback suppression, intelligent noise reduction, and automatic gain.
25. The array microphone and expansion microphone use wireless deployment, requiring no installation.
26. The array microphone has built-in 4-array pickup heads, with a pickup radius of 7 meters and a recommended pickup radius of 4 meters.
27. The array microphone has a built-in 8W high-power speaker, with a maximum playback volume of 105dB.
28. The array microphone has a built-in 5200mAh rechargeable lithium battery.
29. The array microphone uses array laser-engraved touch keys, with multiple lighting effects to indicate different states for easy status checking.
30. The array microphone uses array lights to display battery level and provides low battery alarm.
31. The array microphone uses array lights to display the connection status of wireless expansion microphones.
32. The array microphone uses array lights to display speaker volume playback level.
33. Supports various software such as Tencent Meeting, ZOOM, DingTalk, Haoshitong, Vidyo, Webex, Skype for Business, Google Hangouts, and all network conferencing software.
34. Compatible with Android, Apple, Windows, Linux, and other operating systems.
